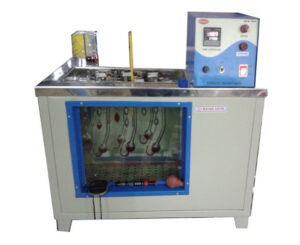

Hamco101H High Temperature Density Bath (Ambient To 120 Deg. C) With Accuracy +/- 0.1 Deg. C Apparatus As Per ASTM D 1298

Test Method:

A versatile constant temperature density bath designed for density/gravity measurement upto 90 deg c Density/Specific Gravity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated hydrometer are used to measure density/specific gravity at precisely controlled temperatures.

Standard:

Conforms to ASTM D323, D1298, D6074, D6158 and related specifications.

Features & benefits :

  • Type of bath: – electrically heated bath.
  • No of hydrometer can be accommodated: 5 No.
  • Inner chamber dimension: 18” x 15” x 7”
  • Outer body size: 26” x 23” x 13”
  • Max working temperature :- 120.0 degree c
  • capacity: – 5 sample at a time.
  • Bath volume : 22 Ltr capacity
  • Heater: – SS tubular heater.
  • Accuracy: – +/- 0.1 to +/- 0.3 degree c
  • Readability: – +/- 0.1 Deg. c Up to 150.0 Deg. C

Standard:

  • Temp. Is controlled by microprocessor based PID temp. Controller of reputed make
  • It is having dual display with solid state relay for switching on & switching off the heater

Input Power Supply:

  • 230 v ac, 50 Hz, 1 phase with 12 amp current rating

Heating Load:

  • 2 kW

Thermocouple:

  • Calibrated RTD type thermocouple will be provided capable of measuring up to 150 Deg. c at accuracy of +/- 0.1 Deg. C
  • Overload safety cut-off
  • Safety for input power fluctuation
  • 1-phase indication lamp.
  • Emergency switch off
  • Double walled construction, thermally insulated with high density puff
  • Powder coated external surface for esthetic appearance
  • Digital display for present, set temperatures
  • Heater indicator
  • Stirrer indicator
  • Main switch on/off indicator
  • Fuse for overload protection
  • Switching on or off for illumination switch.
  • Density Jar without base — 5 no (cat no hamco101s1)
  • Glass fuse — 1 no (cat no hamco101s3)
  • Shipping Weight: 84 lbs (38 kg)
  • Dimensions: 10.8 Cu. ft
  • 26”x23”x13” (66x58x33)
  • Net Weight: 56 lbs (22 kg)

Electrical Requirement:

  • 220-240V, 50/60Hz, Single Phase, 12.0A
  • OR 115V, 50/60Hz, Single Phase, 24.A

Ordering Information:

CATALOGUE NO PRODUCT DESCRIPTION ELECTRICAL REQUIREMENT
Hamco 101h High Temperature Density Bath(0 To 120 Deg. C) 220-240v, 50/60hz
Hamco 101h exp High Temperature Density Bath(0 To 120 Deg. C) 115v, 50/60hz
Hamco 101s1 Universal Viscometer Holder
Hamco 48s3 Glass Fuse
Hamco 48s4 Capillary Viscometer
Hamco 48hac1 Temperature Controller
Hamco 48ac 2 SSR With Heat Sink
Hamco 48ac 3 Switchgear
Hamco 48ac4 SS Tubular Heater
Hamco 48ac5 Stirrer Motor
Hamco 48ac6 Illumination Tube
