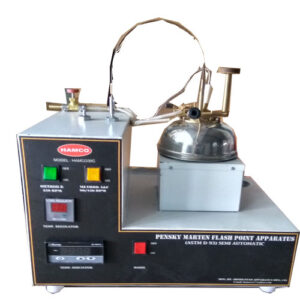

SEMI-AUTOMATIC PENSKY MARTENE FLASH POINT
APPARATUS AS PER CAT NO: HAMCO 30C



PMCC SEMI AUTOMATIC

Introduction:
“HAMCO” make Semi-Automatic Penske Marten Flash Point Apparatus are designed & fabricated to suit
various ASTM, IP & I.S. standards application in the growing field of petroleum, grease, Biodiesel
,Pharmaceutical Research Laboratories & Various Industries. It has a cutting edge technology to
challenge & maintain Climatic conditions above freezing what so ever & where ever you need.
Features:
a) Temperature room temp. . To 3700C
b) Digital Display Electronic Temperature
Controller with an accuracy of +/-0.50C
SPECIFICATIONS

  • It determines the flash point by semi-automatic pensky martene closed cup tester of fuel oils, lube oils, suspension of solids, liquids that tend to form a surface film under test conditions, and other liquids.
  • HAMCO 30C Semiautomatic Pensky Martene flash point apparatus electrically heated can be controlled by energy regulator or voltage variac.
  • It can be heated electrically or by gas also.
  • Dual speed – Deluxe model.
  • With oil cup, lid, gas ignition device.
  • Electric driven stirring device with dual speed 90-120 rpm and 250 rpm.
  • Air arrangement for cooling.
  • Energy regulator temperature controller with temperature indicator.
  • Gas ON/OFF valve.
  • Power supply: 230 V, 1 Phase, 50 Hz, 8 A total load.
  • Size of the equipment approximately 330mm X 310mm X 290mm.
  • Weight approx: 8.0 Kg.

ACCESSORIES WILL BE SUPPLID WITH EQUIPMENT :-

1) PENSKY MARTENE CUP & LID — 1 NO (CAT NO HAMCO30AC1)

SPARES REQUIRED FOR 5 YEAR TROUBLE FREE OPERATION :-

  • ENCONOL HEATER — 2 (CAT NO HAMCO30S1)
  • PMCC CUP & LID — 2 (CAT NO HAMCO30AC1)

ELECTRICAL REQUIREMENT

  • 220-240V, 50/60Hz, Single Phase, 9A
  • OR 115V, 50/60Hz, Single Phase,8A

Dimension: – Ixwxh, in.(cm)

* 11x22x17 (28x53x41)

  • Net Weight: 49 lbs (22kg)

Shipping Information:-

  • Shipping Weight: 78 lbs (35kg)
  • Dimensions: 7 Cu. ft.

ORDERING INFORMATION :-

CATALOGUE NO PRODUCT DESCRIPTION ELECTRICAL
REQUIREMENT
HAMCO 30C SEMIAUTOMATIC PENSKY

MARTENE FLASH

220-240V, 50/60Hz
POINT APPARATUS
HAMCO 30B EXP SEMIAUTOMATIC PENSKY

MARTENE FLASH

115V, 50/60Hz
POINT APPARATUS
HAMCO 30S1 ENCONOL HEATER
HAMCO 30AC1 PMCC CUP & LID



  • It determines the flash point by semi-automatic pensky martene closed cup tester of fuel oils, lube oils, suspension of solids, liquids that tend to form a surface film under test conditions, and other liquids.
  • HAMCO 30C Semiautomatic Pensky Martene flash point apparatus electrically heated can be controlled by energy regulator or voltage variac.
  • It can be heated electrically or by gas also.
  • Dual speed – Deluxe model.
  • With oil cup, lid, gas ignition device.
  • Electric driven stirring device with dual speed 90-120 rpm and 250 rpm.
  • Air arrangement for cooling.
  • Energy regulator temperature controller with temperature indicator.
  • Gas ON/OFF valve.
  • Power supply: 230 V, 1 Phase, 50 Hz, 8 A total load.
  • Size of the equipment approximately 330mm X 310mm X 290mm.
  • Weight approx: 8.0 Kg.
