Test Method: – Tests the ability of medium to high viscosity oils to separate from water when water contamination and turbulence are encountered. The sample is stirred together with distilled water for 5 min. at constant temperature. After a specified settling period, the degree of separation is measured by volume and the percentage of water in oil is determined. For lighter oils and synthetic fluids, the ASTM D1401 Water Separability Test is used.

Standard: – ASTM D1401

Features & Benefits:-

• Stirring Range :- 4500
• Accuracy :- +/- 100
• Bath Temperature :- Ambient +5 deg C to 90 deg
• Control stability :- +/- 5 deg c.
• Capacity :- 2X 500 ml graduated Cylinder
• Medium :- Water or white technical
• Temperature controller :- Digital display PID controller
• Sensor :- PT 100
• Heater :- Stainless steel 2000
• Timer :- 99 Min 59 sec preset
• Bath circulator :-
• Illumination :- Rear

Description :-

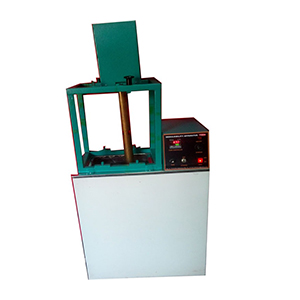

Constant temperature bath with stirrers for water seperability test. Load the 360 ml of sample & 90 ml of water ( with EP Additives) OR 405 ml of sample & 45 ml of water (Without EP Additives) . Load the separating funnel in bath at 82 +/- 1 deg c.

Stirs sample-water mixtures at 4500rpm+/- 500 RPM for 5 minutes and record the volume of oil and water after 5 minutes.

Accessories Will Be Supplied With Equipment:-

• Seperating funnel 500 ml cylinder for water separatability (Model HAMCO 181AC1) — 2
• Rear Illumination — 1

Spares Required For 5 Year Trouble Free Operation:-

• Separating funnel 500 ml Cylinder (HAMCO181AC1) 3
• SSR (SSR 25) 2
• GLASS FUSE 3

Electrical Requirement

• 220-240V, 50/60Hz, Single Phase, 0A
• OR 115V, 50/60Hz, Single Phase,20.0A

Dimension: – Ixwxh,in, (cm)

lxwxh, in.(cm): 20.75×15.25×29.5 (52.7×38.75x 74.9),Net Weight: 83 lbs (37.6 kg)

Shipping Information:-

Shipping Weight: 188 lbs (85.3 kg),Dimensions: 34x27x40 in. (86.4×68.6×101.6 cm)

Ordering Information:-
