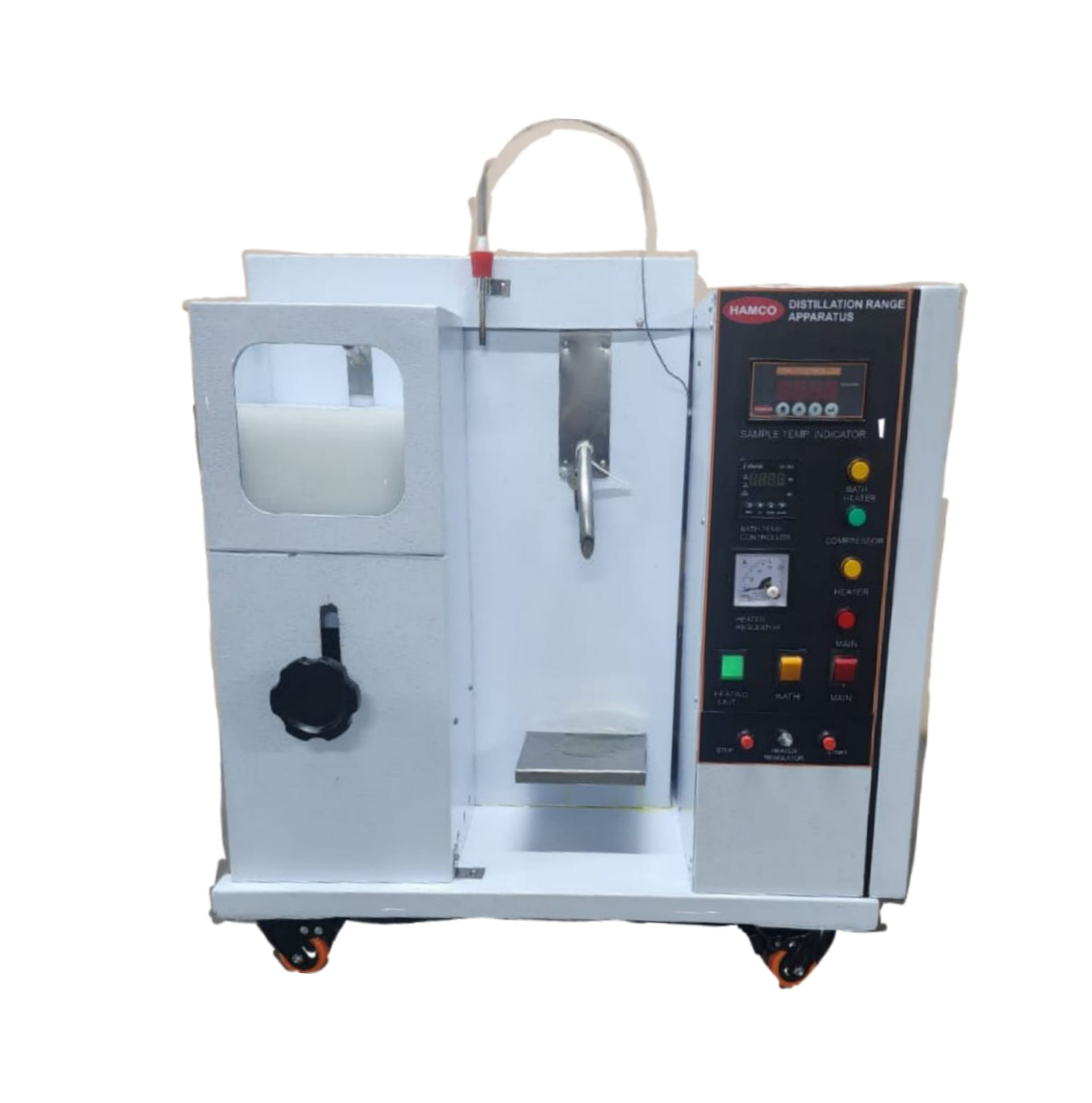

HAMCO70 DISTILLATION TEST APPARATUS AS PER ASTM D 86
Test Method:
The sample is evaporated and condensed under controlled conditions, and observations are made of the temperatures at which various percentages are recovered and/or the percentages recovered at specified temperatures.
What is Distillation range apparatus?
- In Distillation range apparatus The sample is evaporated and condensed under controlled conditions, and observations are made of the temperatures at which various percentages are recovered and/or the percentages recovered at specified temperatures.
What standard distillation apparatus for petroleum product follows?
- Conforms to the specifications of:
ASTM D86, D285, D4737 and related international specifications
What is the objective of ASTM Distillation range tester?
- A distillation range apparatus is used to determine the distillation characteristics (boiling range) of volatile liquids, primarily petroleum products, under standardized conditions. It plays a vital role in quality control, specification testing, and refining process evaluation.
What is the application of Distillation range testing equipment ?
- Determine Distillation Range (Boiling Range):
Boiling apparatus Measures the temperature range over which a liquid mixture (like gasoline, diesel, kerosene) evaporates and condenses, providing a distillation curve. - Quality Control of Fuels and Solvents:
Boiling point equipment Ensures that petroleum products meet standard boiling specifications as per ASTM D86, ISO 3405, etc. - Product Classification:
Boiling point tester Helps classify fuels (e.g., light vs. heavy fractions) based on their volatility and boiling behavior. - Refining Process Monitoring:
Boiling point apparatus Used in refineries to assess the performance of distillation columns and blending processes. - Safety & Performance Evaluation:
The boiling range apparatus directly impacts fuel performance, combustion behavior, and safety. - Regulatory Compliance Testing:
Required for testing products in accordance with regulatory and industry standards (ASTM, IP, BIS, etc.). - Applicable for Testing:
- Gasoline / Petrol
- Diesel
- Kerosene
- Jet fuels
- Solvents
- Naphtha
- Other light to medium petroleum fractions
What are other names petroleum distillation range apparatus known?
- Distillation range apparatus
.
- Distillation apparatus for petroleum products
- ASTM distillation range tester
- Distillation range testing equipment
- Automatic distillation range apparatus
- Petroleum distillation range apparatus
- Laboratory distillation range unit
- Distillation range apparatus ASTM D 86
- Distillation tester for fuel
- Distillation range measuring instrument
- Distillation range apparatus as per ASTM D 86
- Automatic distillation apparatus for diesel and petrol
- Distillation range equipment for petroleum analysis
- Distillation tester for lubricants and fuels
- Digital distillation range apparatus with auto cut-off
- Petroleum product distillation testing instrument
- Best distillation apparatus for laboratory use
- Crude oil distillation tester
- Boiling point range apparatus
- ASTM D86 distillation unit
- Fuel analysis euipment
- Petroleum testing instruments
- Semiautomatic distillation range tester
What are the featres of Hamco Make Distillation range Tester?
- Hamco Make Distillation range tester is semiautomatic and follows ASTM D 86.
- It has low wattage heater for long life and high temperature application
- It has refrigerated cooling bath having heating facility too to maintain temp 5 to 60 deg C.
- It has all the necessary accessories to perform the test.
- It has one start and stop switch to start the operation.
- It has highly accurate precise temp Indicator which is fast acting for recovery measurement.
Why Hamco ?
- Hamco is the leading Distillation range apparatus manufacturer in india.
- Hamco is the Manufacturer of distillation range tester
- Hamco is exporter of distillation range tester
- Hamco is Manufacturer of petroleum distillation tester
- Hamco is Manufacturer of ASTM distillation
- Hamco is exporter of distillation range apparatus
STANDARD : Conforms to the specifications of:
ASTM D86, D285, D4737 and related international specifications
- TYPE OF HEAING :- ELECTRICALLY HEATED HEATER
- MAX WORKING TEMPERATURE :- 400 DEGREE C
- CONTINOUS WORKING TEMPERATURE :- 350 DEGREE C
- CAPACITY :- 1 SAMPLE AT A TIME.
- HEATER :- CERAMIC COIL HEATER
- INPUT POWER SUPPLY : 230 V AC, 50 HZ, 1 PHASE WITH 8 AMP CURRENT RATING.
- HEATING LOAD : 1 KW .
- FLASK ADJUSTMENT : BY MANUAL CAM MECHANISAM/ RACK & PINION ARRANGEMENT
- COOLING BATH : MADE OF STAINLESS STEEL WITH DRAIN CORK.
- COOLING BATH STAND : MS STAND , DULY POWDERCOATED
- DISTILLATION FLASK : MADE OF CORNING GLASS , CAPACITY 125ML .
- MEASURING CYLINDER : MADE OF CORNING GLASS WITH GRADUATION DONE AS PER CLASS A CERTIFICATE.
- SIDE ARM CORK : MADE OF SILICON TO WITHSTAND HIGH TEMPERATURE.
- TOP ARM CORK : MADE OF SILICON TO WITHSTAND HIGH TEMPERATURE AND TO MOUNT THERMOMETER.
- ASTM 7C UPTO 300 DEGREE C
- ASTM 8C UPTO 400 DEGREE C
- DOUBLE WALLED CONSTRUCTION , THERMALLY INSULATED WITH INSIDE BODY MADE OF STAINLESS STEEL OUTSIDE GI.
- POWDER COATED EXTERNAL SURFACE FOR ESTHATIC APPEARANCE.
ACCESSORIES WILL BE SUPPLID WITH EQUIPMENT :-
- DISTILLATION FLASK 1 NO(CAT NO HAMCO 30AC1)
- MEASURING CYLINDER 1 NO (CAT NO HAMCO 30AC2)
- SIDE ARM CORK 1 NO (CAT NO HAMCO 30AC3)
- TOP ARM CORK – 1 NO. (CAT NO HAMCO 30AC4)
- THERMOMETER ASTM 7C 1 NO. (CAT NO HAMCO 30AC5)
- THERMOMETER ASTM 8C – 1 NO. (CAT NO HAMCO 30AC6)
SPARES REQUIRED FOR 5 YEAR TROUBLE FREE OPERATION :-
- DISTILLATION FLASK 6 NO(CAT NO HAMCO 19AC1)
- MEASURING CYLINDER 6 NO (CAT NO HAMCO 19AC2)
- SIDE ARM CORK 3 NO (CAT NO HAMCO 19AC3)
- TOP ARM CORK – 3 NO. (CAT NO HAMCO 19AC4)
- THERMOMETER ASTM 7C 3 NO. (CAT NO HAMCO 19AC5)
- THERMOMETER ASTM 8C – 3 NO. (CAT NO HAMCO 30AC6)
- ASBESTOS PAD BIG HOLE – 3 NO ( CAT NO HAMCO 19S1)
- ASBESTOS PAD SMALL HOLE (CAT NO HAMCO 19S2)
- HEATER 3 NO ( CAT NO HAMCO 19S3)
ELECTRICAL REQUIREMENT
- 220-240V, 50/60Hz, Single Phase, 8.0A
- OR 115V, 50/60Hz, Single Phase, 16.0A
DIMENSION :-
- L x W x H in (cm) 16”x21.5”x14.5” (41x55x37)
- Net Weight: 64 lbs (29kg)
SHIPPING INFORMATION :
- Shipping Weight: 78 lbs (35kg)
- Dimensions: 8.2 Cu. ft.
Ordering Information:
| CATALOGUE NO | PRODUCT DESCRIPTION | ELECTRICAL REQUIREMENT |
|---|---|---|
| HAMCO 70 | DISTILLATION APPARATUS | 220-240V, 50/60Hz, 10.8 AMP |
| HAMCO 70EXP | DISTILLATION APPARATUS | 115V, 50/60Hz,20.8 AMP |
Note: ASTM distillation apparatus
