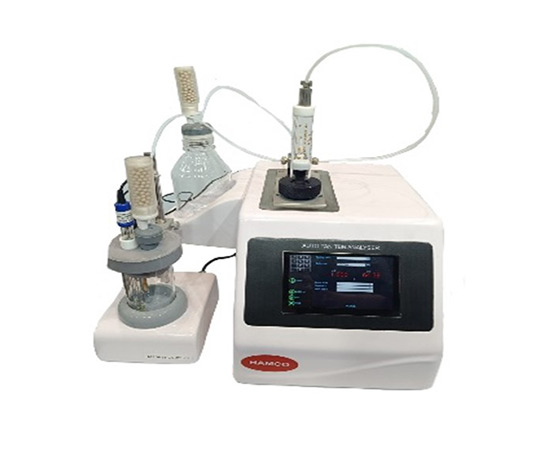

AUTOMATIC VOLUMETRIC KARLFISCHER TITRATION ANALYZER WITH TOUCHSCREEN PLC AND THERMAL PRINTER WITH 21CFR COMPLIANCE HAMCO 123C MODEL:
| CERTIFICATIONS | OUR Automatic Karl fischer Titration analyzer ARE CE Certified Apparatus . We as
company is ISO 9001:2008 Certified Company. |
| MODEL & FEATURES | HAMCO 123C Fully Automatic Karl Fischer titration apparatus for automatic determination of Moisture content testing. It is having Inbuilt HMI PLC. It is Inbuilt pellestatic pump It is built with auto detection system. It is highly accurate in measurement .It will automatically measure volume require to titrate the sample. Final calculation will be done automatically.
Inbuilt thermal printing . 1000 data storage memory. With 21CFR Software. With Complete IQ,OQ,PQ Documents. |
|
TEST METHOD |
HAMCO AUTO KARL FISCHER TITRATION APPARATUS is used for accurate determination of moisture in various samples. The instrument is housed in a mild steel cabinet duly powder coated with built in magnetic stirrer & attached titration stand. Controls are mounted on the front panel for easy operation. HAMCO Karl fisher titrator finds application in chemical, pharmaceutical, food, cosmetic, oil & many other industries in QC and R & D Laboratories. |
| STANDARD | Confirm to the specification ASTM E 203 |
| METHODS | It is volumetric titration Method |
| MODES | Calculation of Factors : To standardize Titrant Normality
Sample Determination : Measuring water content in sample. |
| RANGE | 50 PPM to 100% drift. |
| PUMP RESOLUTION | 0.01 ml |
| END POINT DETECTION | Audio & Visual Alarm. |
| DRIFT COMPENSATION | Automatic |
| PUMP | Incorporated with maintenance free metering pump. |
| ELECTRODE | Twin Platinum electrode. |
| RESULT | Results are in %, PPM or Mg of H2O |
| CUT OFF CRITERIA | Volume, End Point, mV |
| VESSEL | Specially designed moisture tight reaction vessel, small quantity of samples can be titrated. |
| RESERVOIR | Amber color reservoir, 250 ml for longer reagent stability. |
| STIRRER | Inbuilt Motorised Magnetic stirrer with Teflon magnet bar. |
| DISPLAY | 4.3 HMI PLC .
Password Protected display. Showing status of the titration by mV Indicator. Showing volume of dosing. |
| THERMAL PRINTER | Inbuilt thermal printer which print the result at the end of the test.
Also can print the data offline by scrolling history. |
|
DQ,IQ,OQ,PQ |
To help the customers to meet current regulatory requirements for the equipment. Hamco provide DQ,IQ,OQ,PQ Protocols. This protocol ensures that the system is properly installed, Operating as per our recommendations, Adequately documented and controlled according to regulatory requirements.
Calibration certificate & Test certificate of critical components along with Operation , Maintenanace Manual, Equipment diagram will be provided. Operation training of the instrument along with software installation and software training is part of our operational qualifications. |
|
CALIBRATION & VALIDATION |
Calibration of the equipment by Calculating factor by putting water into methanol by 10 l Syringe. 10 such values of factors can be stored and select them and average them and save them make instrument calibrated.
Once calibration done , Validation will be done by using Di-Sodium tartrate 2- hydrate Purified E-MERCK MAKE. |
|
PC SOFTWARE |
Desktop based PC software with SQL Database.
GMP Compliant : Tamper Proof documentation of Measured data. Authorised access only. Formatted Report with User name and time stamp. |
| ACCURACY | 0.4% to 25mg of H 2 O. |
| TIME DELAY | 3 to 60 sec adjustable. |
| PUMP MODE | Forward : For titration.
Reverse : For taking back KF reagent back to reservoir if not in Use. |
| UTILITIES ( AT
BUYERS SCOPE) |
KF Reagent from Branded Manufacturer.
Methanol. Calcium chloride or Silica gel. Di-Sodium tartrate 2-hydrate Purified E-MERCK MAKE. Weighing balance of 1 mg resolution. Stabilized Power Supply. |
| ACCESSORIES SUPPLIED ALONG WITH EQUIPMENT | Main Unit.
10 l Syringe. Titration Vessel. Reservoir bottle. Pump tubing 2 Nos. Teflon coated magnetic bar. Electrode. |
| 5 YEARS ACCESSORY FOR TROUBLE FREE OPERATION | Titration Vessel 3 Nos.
Reservoir Bottle 2 Nos. Platinum electrode 2 Nos. Teflon coated magnetic bar 2 Nos. Pump tubing 10 Nos. |
| Weight | 8.0 Kg |
| Dimensions | L x W x H (cm): 22 x 34 x 42 (cm) |
| POWER SUPPLY | 230 V Ac , 5 Amp , 50/60 Hz Power Supply |
| TYPE OF KARL FISCHER TITRATION | Automatic Volumetric Karl Fischer titrator |
| MODEL NO | HAMCO 123C |
