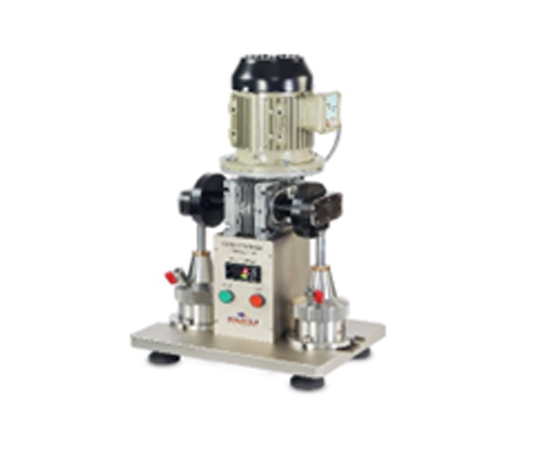

AUTOMATIC MECHANICAL GREASE WORKER , MOTORISED WITH DOUBLE STROKE WITH PLC NON TOUCHSCREEN WITH PRINTER : MODEL HAMCO68B
| CERTIFICATIONS | OUR Mechanical grease worker single stroke Model ARE CE Certified Apparatus . We as company is ISO 9001:2008 Certified Company. |
|
MODEL & FEATURES |
HAMCO68A Mechanical grease worker Motorised with double stroke has following features.
Non Touchscreen PLC Controller Motorised grease worker to reduce mechanical effort. Single selection of programme and the machine run same as programme. Both the function of set counter as well as timer. For example if you need 1000 stroke or to run 1 hr whoever is early it finishes there. Digital counter for both set time vs Actual time and set counter vs actual counter display. At the end of the test it horns buzzer until we acknowledge it. Emergency button to stop the operation immediately as safety options. Programmable cycle where you can select preprogrammed cycle with fixed counter and timer , make it one click to start the operation.
|
|
TEST METHOD |
For worked penetration and prolongedworked penetration tests to determine consistency of lubricating greases.Consists of single or dual steel ASTM grease workers mounted on a sturdybase and driven by a powerful gear reduction motor. Meets ASTMspecifications for stroke length and rate. Equipped with a presettingelectronic counter that automatically shuts off the drive motor after any desirednumber of strokes up to 99,999. Steel grease workers have threaded cup andcover, and steel plunger plate with shaft and handle that connects to eccentriccam on drive unit. Accessory dial thermometer inserts in plated vent cock.Spring loaded tightening clamps hold grease workers securely on base, andsteel pins in the base facilitate disassembly of grease workers after testing. |
| STANDARD | Confirms to ASTM D217, D4950; IP 50; ISO 2137; DIN 51804; FTM 791-311, 791-313 |
| STROKE SPEED | 60+/- 10 Stroke per Minute. |
| UNWORKED, WORKED AND EXTENDED WORK | UNWORKED STROKE : 0
WORKED STROKE : 60 EXTENDED WORK : 10,000 |
| MOTOR | HP SINGLE PHASE MOTOR WITH REDUCTION GEAR BOX WITH BOTH SIDE SHAFT . |
| TYPE OF
GREASE WORKER |
Automatic Grease Worker with Motorized function with programed mode to prefix the preprogrammed counter of stroke or time. |
|
APPLICATION |
A Automatic Mechanical Grease Worker is used to simulate the mechanical working that lubricating greases undergo in real-life service (such as in bearings, gears, or joints).
It prepares worked grease samples for penetration and consistency testing. Motorised Grease worker reduces human effort and Automation helps in making the operations easier.
|
|
CONSTRUCTION |
Body Frame is made of aluminum which makes it light weight and corrosion resistant and heavy duty.
Control panel is made galvanized iron with powder coating. |
|
PRINTING |
Thermal printer capable to value the test status by printing Date, Time, Sample Id, Sample name, Operator name, No of stroke and Actual time and Remark. |
|
DISPLAY |
HA CONTROLLER PLC NON TOUCH SCREEN DISPLAY
Thermal printer Emergency switch to stop immediately all output. Hooter to indicate once the stroke counter over or time over or any fault. Main switch to start the Operation. |
| GREASE CUP AND HANDLE | Detachable grease worker cup with Handle and cover.
Cup Handle is guide in bearing to reduce friction and noise. |
| ACCESSORIES SUPPLIED ALONG WITH THE INSTRUMENTS | Grease Worker Cup with Handle — 2 NO(CAT NO HAMCO 68AC1)
|
| UTILITIES (PREINSTALLATION REQUISITE)
AT BUYER SCOPE |
Sample Grease pprox.. 500 gm
Washing Solvent. 1. Big Spatula to fill or Remove grease into Grease cup |
| MODEL NO | HAMCO68B |
| TYPE OF GREASE WORKER | AUTOMATIC MECHANICAL GREASE WORKER , MOTORISED WITH DOUBLE STROKE WITH PLC NON TOUCHSCREEN WITH PRINTER |
