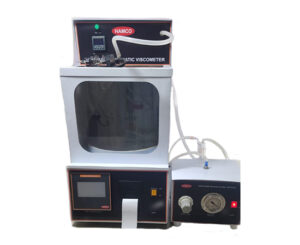

SEMIAUTOMATIC KINEMATIC VISCOMETER WITH AUTO VISCOSITY DETERMINATION WITH PLC TOUCHSCREEN COLOR DISPLAY WITH INBUILT PRINTER (0.01 DEG C ACCURACY) HAMCO 48SH MODEL:
| CERTIFICATIONS | OUR Semiautomatic Kinematic Viscometer ARE CE Certified Baths. We as company is ISO 9001:2008 Certified Company. |
|---|---|
| MODEL & FEATURES | HAMCO 48SH Semiautomatic Kinematic viscometer having Highly accurate bath With Motorised Stirrer for Unifrom Temperature, Illumination for Better Visibility & With Zero Vibration for Highly repeatable results & Ease of Operation. It is coming with 5 station position. It is having touch screen PLC Control with Auto viscometer configuration with Auto feed of viscometer type, size and constant addition. Auto timer with manual feed button with Auto viscosity calculation. 1000 data storage memopry. Inbuilt printer which print result on auto detection of viscosity.. Auto sample suction facility. Automatic viscometer cleaning device. Automatic viscosity Index calculation. |
| TEST METHOD | Kinematic viscosity is of primary importance in the design and selection of a wide range of petroleum products. Calibrated capillary viscometers are used to measure flow under gravity or vacuum at precisely controlled temperatures. |
| STANDARD | Conforms to the specifications of: ASTM D445, D2532, D6074, D6158, IP 71, ISO 3104, DIN 51550, FTM 791-305. |
| TEMP RANGE | Temperature Range Ambient+5 to 150C |
| ACCURACY | +/- 0.01 to +/- 0.03 degree c |
| READABILITY | +/- 0.01 Deg. c up to 99.99 Deg. and 0.1 Deg. Up to 150.0 Deg. C |
| TYPE OF BATH | Electrically Heated Bath |
| END POINT DETECTION | Potentiometric / Voltametric |
| CONSTRUCTION GMP MODEL | Double walled , Outer Body GI Powder Coated. Inner Body Made of Borosilicate glass jar. Bath Lid is Made of Black backelite sheet. |
| BATH SIZE | Inner chamber dimension: 12 X 12 Outer body size: 26 x 23 x 13 |
| TEMPERATURE SENSOR | Calibrated RTD type thermocouple will be provided capable of measuring up to 150 Deg. c at accuracy of +/- 0.01 Deg. C |
| CAPACITY | 5 Nos of Viscometer can be accommodated at a time. Bath volumetric capacity around 23 Ltr |
| STIRRER | Motorised Stirrer. Design of stirrer is such that , it is zero Vibration. |
| CONTROLLER | Temp. Is controlled by microprocessor based PID temp. Controller of Eurotherm or reputed make, It is having dual display with solid state relay for switching on & switching off the heater. PLC Touchscreen based system. |
| DISPLAY | Touch screen HMI PLC Color display. Digital display for present, set temperatures. Heater indicator. Stirrer indicator. Main switch on/off indicator. Fuse for overload protection. Switching on or off for illumination switch |
| HEATING | SS Tubular Heater. Our Consealed heater provide energy efficiency with Long life. Heater Rating 1000 W X 2 Nos . Total 2000 W. |
| ILLUMINATION | Illumination will be provided for better visibility of the sample. |
| SAFETY | IP 22 Protection. Over temperature Protection. Low water level Protection. Short Circuit protection. Over Load Current Protection. High temp safety cut off Protection. 1-phase indication lamp. Emergency switch off |
| TEST MODE | Viscosity Determination Mode :- Here e prefeed the Viscometer constant, Type, size, temp pre feeded and it gives us the automatic viscosity of the sample. Custom Mode :- Here the data is not prefeeded but need to manually feed like viscometer type, size, constant and rest process is same. Manual Timer :- Here only manually timer can be On/Off. Viscosity Index:- This is for auto calculation of the viscosity index . Suction Mode:- Here it used for suction of the oil for timing calculation and cleaning of the viscometer. |
| TYPE OF VISCOSITY CAN BE MEASURED | Kinematic Viscosity of all flow able liquids. Intrinsic Viscosity of Polymers or resins by measuring the viscosity of solution and solvents. Dynamic viscosity of Bitumen, wax etc. |
| ACCESSORIES SUPPLIED ALONG WITH THE INSTRUMENTS | Universal viscometer holder — 5 no (cat no hamco48s1) Suction bulb — 1 no (cat no hamco48s2) Glass fuse — 1 no (cat no hamco48s3) Bath Cover — 5 Nos 4 Nos Glass viscometer with constant at 40,50 & 100 degree c of any size of DF with calibration certificate traceable to cannon oil USA (cat no hamco48s4) . Other than this need to inform Hamco Priorely |
| SPARES REQUIRED FOR 5 YEAR TROUBLE FREE OPERATION (AT EXTRA COST. NOT INCLUDED IN PRICE) | HMI PLC — 1 nos.(cat no hamco48hac1) SSR with heat sink — 1 no.(cat no hamco48ac2) Glass fuse — 3 no.(cat no hamco48s3) Switchgear(main switch & bulb ) – 3 no each (cat no hamco48ac3) SS tubular heater – 2 no. (cat no hamco48ac4) Stirrer motor – 1 no.(cat no hamco48ac5) Illumination tube – 1 no. ( cat no hamco48ac6) Thermometer ASTM 120c with Cal cert. -1 no(cat no hamco48ac7) Thermometer ASTM 121c with Cal cert. -1 no(cat no Hamco48ac8) |
| UTILITIES (PREINSTALLATION REQUISITE) AT BUYER SCOPE | Room temperature around bath preferably at 25 degree C. Stabilised input voltage of 230V Ac, 50 Hz, 15 Amps. Silicon Oil ( @ 100 deg C) or Any other Suitable Oil having below said property (Transparent, Should have flash point above 175 deg C , Should have viscosity less than 10 CST at respective temperature) or Distilled Water ( @ 40 deg C) Acetone Methanol |
| POWER SUPPLY | 230 V Ac , 15 Amp , 50/60 Hz Power Supply |
| DIMENSION & NET WEIGHT OF EQUIPEMTN | 26x23x13 (66x58x33) Net Weight: 56 lbs (22 kg) |
| SHIPPING INFORMATION | Shipping Weight: 84 lbs (38 kg) Dimensions: 10.8 Cu. ft. |
| DOCUMENTS SUPPLIED ALONG WITH THE INSTRUMENTS | NPL Traceable Calibration Certificate for Temp Sensor. Digital Temp Controller Certificate. SD,IQ,OQ,PQ document Electrical Wiring Diagram. Maintenance Manual. Warranty Certificate. Timer certificate. 4 Nos calibrated viscometer certificate with constant at 40,50 and 100 deg C treacable to NABL Certificate |
| TYPE OF KINEMATIC VISCOSITY BATH | SEMIAUTOMATIC KINEMATIC VISCOMETER +/- 0.01 DEG C ACCURACY |
| MODEL NO | HAMCO 48SH |
